Hot-Stage Microscopy (HSM)

Drug excipients are essential for formulation molding, solubility enhancement, and stability improvement, but their interactions with Active Pharmaceutical Ingredients (APIs) may lead to incompatibility issues (e.g., phase separation, new crystal formation, or chemical reactions), directly affecting drug quality and clinical safety.

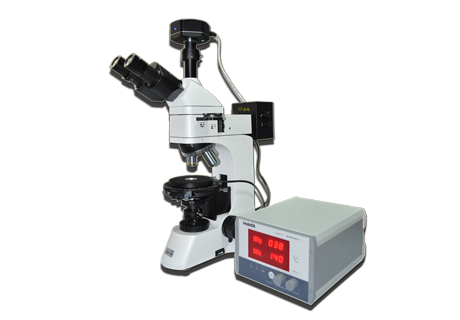

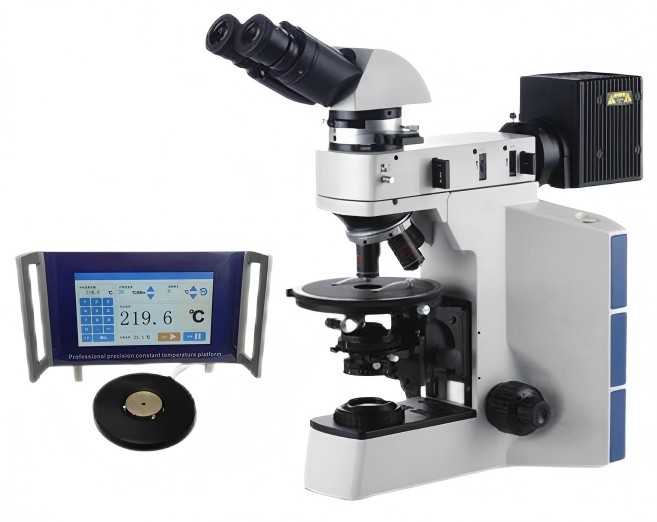

Hot-Stage Microscopy (HSM) is a robust thermo-microscopic analytical technique that enables real-time visualization of morphological and structural changes in samples under controlled temperature programming. It directly captures thermal events including melting, crystallization, glass transition, recrystallization, desolvation and degradation, delivering unambiguous visual evidence for material characterization and interaction analysis.

In drug-excipient compatibility studies, HSM data interpretation focuses on visual and thermal profile alterations in drug-excipient mixtures compared to pure components. Key indicators of incompatibility include abnormal morphological changes (agglomeration, discoloration, phase separation) during heating, distorted melting or premature decomposition, and unexpected phase transitions or new domains indicating polymorph conversion or chemical reaction. By analyzing these deviations, HSM enables direct, intuitive and material-saving screening before long-term stability studies.

Applications in Drug-Excipient Compatibility Studies

HSM is indispensable in pharmaceutical preformulation and formulation development, with outstanding strengths in compatibility evaluation:

• Comprehensive Compatibility Identification: It identifies incompatibilities that compromise drug stability, bioavailability, or formulation performance, providing early-stage warning and reducing late-stage development risks recognized by regulatory agencies such as FDA and ICH.
• High-Efficiency Screening: Realizes real-time in-situ observation of thermal events under controlled temperatures; characterizes micro-structural changes; clarifies thermal signals and validates manufacturing processes.
• Precise Thermal Characterization: Flagging interactions that may lead to degradation (e.g., acid-base reactions with enteric coatings).

HSM enables real-time in-situ observation of thermal events including melting, phase transition, desolvation, and co-fusion under precisely controlled temperature conditions. It delivers direct visual characterization of microscopic structural changes, supplies comprehensive supplementary data for thermal analysis results, and identifies easily overlooked incompatibility signals with high intuitiveness. HSM provides credible, image-based microscopic evidence to support robust and reliable pharmaceutical formulation development.

PharmaAnalytica's Technology Platform

PharmaAnalytica's HSM-Based Drug-Excipient Compatibility Studies

PharmaAnalytica's HSM services transform drug-excipient compatibility screening into a fast, visual and data-driven decision-making process.

High-Throughput Visual Screening

Automated HSM systems and image analysis algorithms enable efficient screening of large excipient libraries, with real-time morphological comparison and objective visual compatibility ranking.

Customized Study Designs

Tailored protocols include humidity-controlled HSM, polarized light HSM for polymorph analysis, binary/multi-component blend visualization and thermal process simulation.

Regulatory-Ready Data Packages

Our reports comply with ICH Q1A, Q6A, and USP <891>, including compatibility risk ratings (low/medium/high) based on thermal deviations.

End-to-End Expert Support

PhD-level scientists provide pre-study consultation, experimental design optimization, data interpretation and formulation recommendations for incompatible pairs.

Combining advanced instruments, regulatory expertise and customized support, we help clients avoid costly formulation failures and accelerate robust drug product development.
